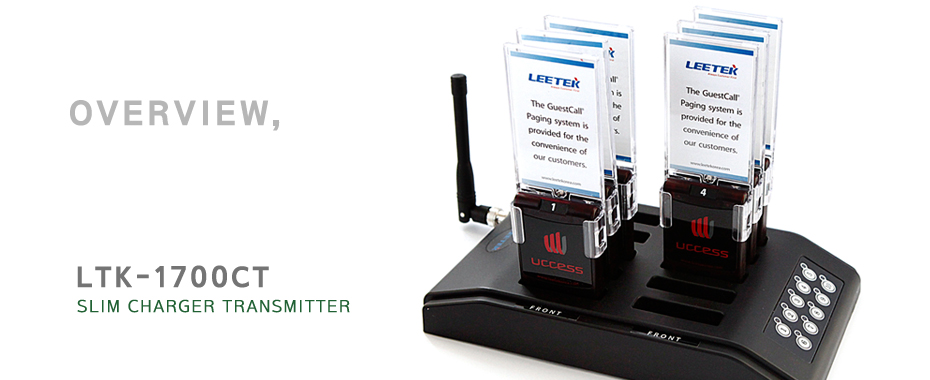

Slim Charger Transmitter

Model : LTK-1700CT





Description

MENU OPTIONS

Base ID Setting
Frequency Setting
BPS Setting
Out of Range Setting
Range Test Setting
Expanding Pager Number Range
ALL PAGE Feature
ALL SLEEP Feature

Spec & Features

Spectifications

Channel Spacing :12.5KHz
Spurious Rejection : -60dB
Emission Type :F1D
Modulation Scheme : FM(FSK)
Standard Deviation : ± 4.5 KHz
Dimension :W(140) X D(230) X H(38)
Occupied Bandwidth: ±8.5 KHz
Total Weight : 2.5 Kg
AC/DC adapter : DC 12V, MAX 3.5A
Frequency Stability : ±10 ppm
Power : 10mW
Code Format : POCSAG Code

Feature

Programmable through its setup menu
Easy and simple operation
Durable and Sturdy to withstand industry conditions
Auto Locate
All Pagers work on Single Transmitter Platform
Smart Charging System with own charger
Advertise with Insert Sheet
Unique Base
Smart Charging eliminates over-charging and extend battery life
