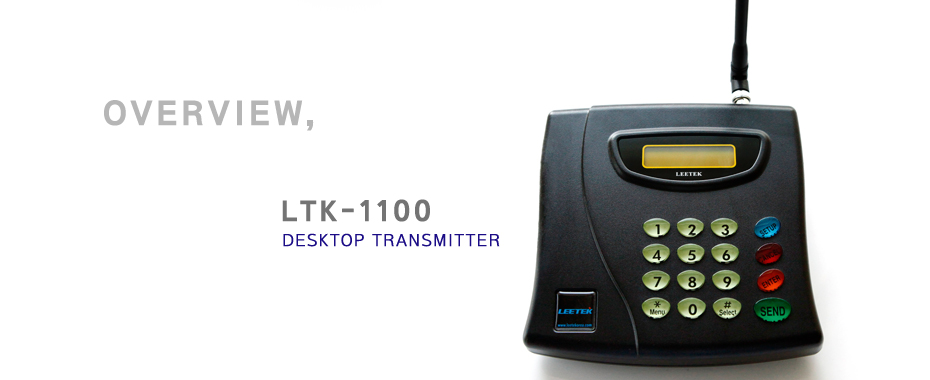

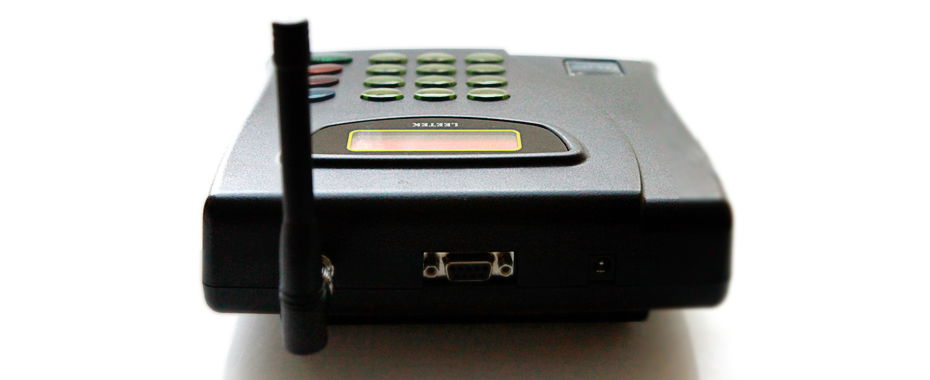

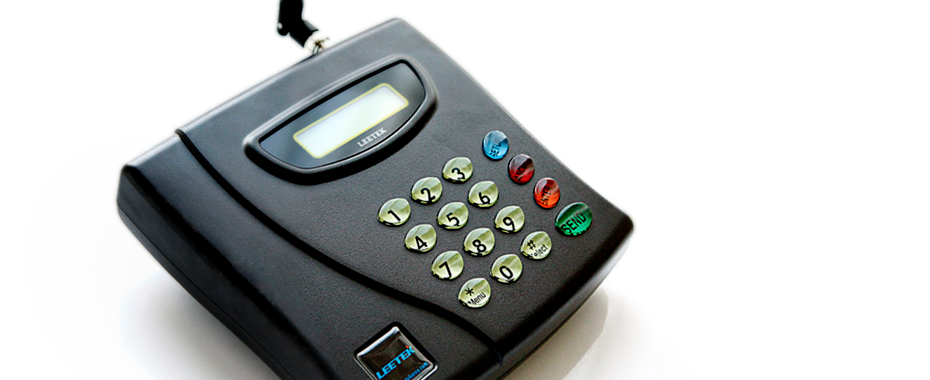

UHF Desktop Transmitter

Model : LTK-1100L





Description

MENU OPTIONS

CURRENT TIME
SLEEP TIME
RANGE TEST
PRE SET MESSAGE
PAGER ALERT
DUTY ALERT
OUT OF RANGE
SET DEFAULT MESSAGE
SER FREQUENCY
BASE ID
GROUP CALL ID
OUT OF RANGE ID
SET BAUD RATE

Spec & Features

Spectifications

Channel Spacing :12.5KHz
Spurious Rejection : -60dB
Emission Type :F1D
Modulation Scheme : FM(FSK)
Standard Deviation : ± 4.5 KHz
Dimension :W(178) X D(187) X H(50)
Occupied Bandwidth: ±8.5 KHz
Total Weight : 3.5 Kg
AC/DC adapter : DC 12V, MAX 3.5A
Frequency Stability : ±10 ppm
Power : 10mW & 2W
Code Format : POCSAG Code

Feature

Programmable through its setup menu
Easy and simple operation
Durable and Sturdy to withstand industry conditions
Selectable Pager Alert Mode
Auto Locate
All Pagers work on Single Transmitter Platform
Smart Charging System with own charger
Advertise with Insert Sheet
Unique Base
Smart Charging eliminates over-charging and extend battery life
